Smart Water Meter: NB-IoT, LoRa, M-Bus, Vertical Spiral

IC card prepaid water meters

1- Built-in clock to control the valve to switch on and off regularly to prevent the valve from holding and scaling

2- Low-power design, built-in 3.6V lithium battery service life ≥6 years; Data be stored for more than 10 years after power failure

3- Top up meter credit before using water

4- Balance inquiry; Report the loss; Reissue a card; Record data and exception events

5- Warning of error, power shortage, water overlaying, water shortage, hoarding, etc.;

6- Available for single water pricing or Tiered water pricing.

Meters with single water pricing program is also available for water electrically and gas paid by one card.

Remote controlled water meters

1- The internal clock be calibrated by the upper computer.

2- Data be stored for more than 10 years after power failure

3- Battery voltage reported periodically

4- The meter reading period be set to report the meter data regularly.

After the benchmark water price and tiered water price based on the user category settled, the management software on the server settles the water charge according to the data reported by the water meter. Pre-paid / post-paid available.

• 5- Available for real-time/timing remote valve control.
• 6- Optional remote controlled meters.

Mechanical characteristics & Parameters

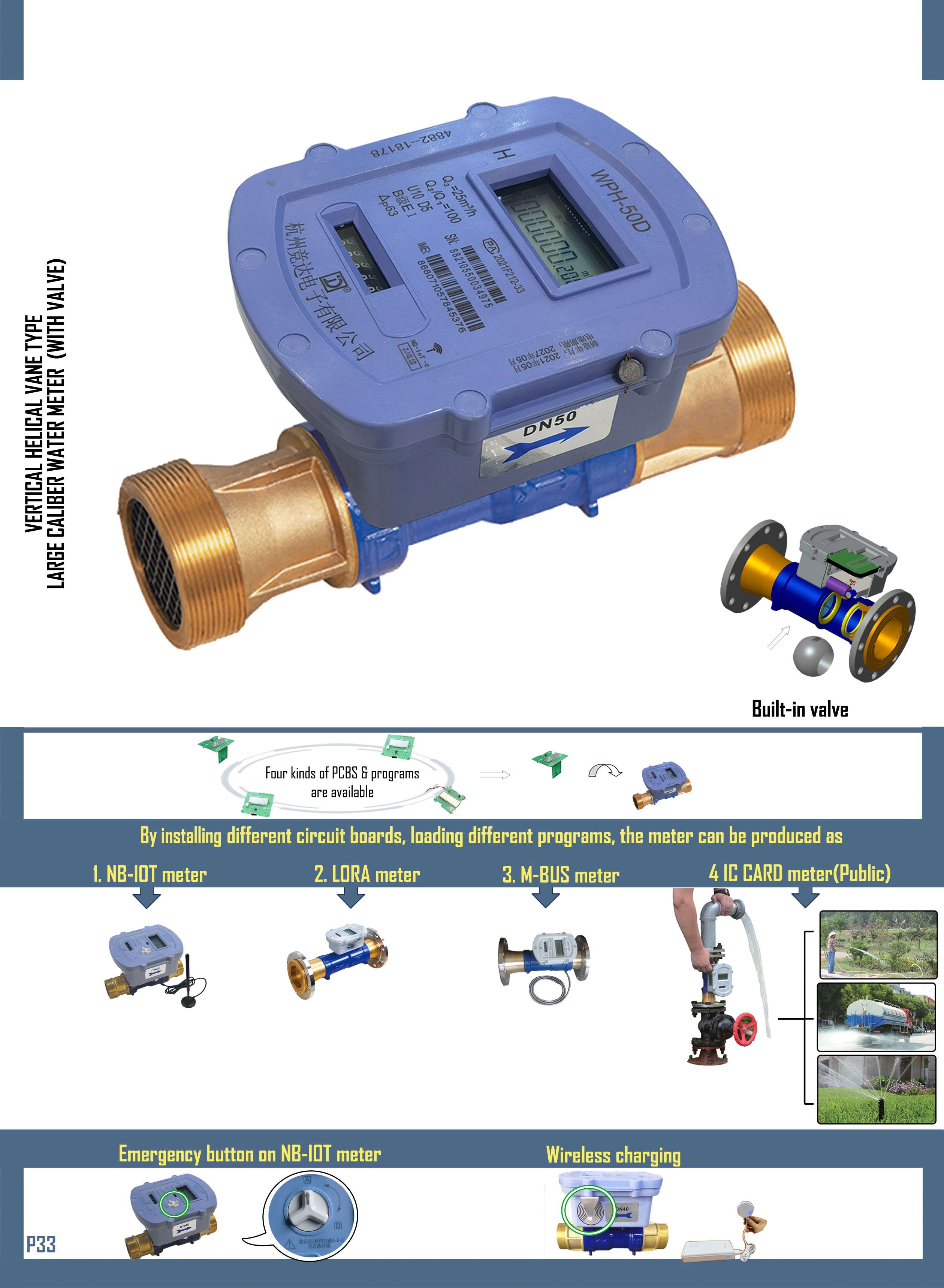

1- Straight pipe section, spiral vane impeller, wearability, low pressure loss, small initial flow, long service life

2- With built-in valve, available for remote control.

3- High precision, wide range, HD LCD screen + character wheel display

4-IP68 waterproof
