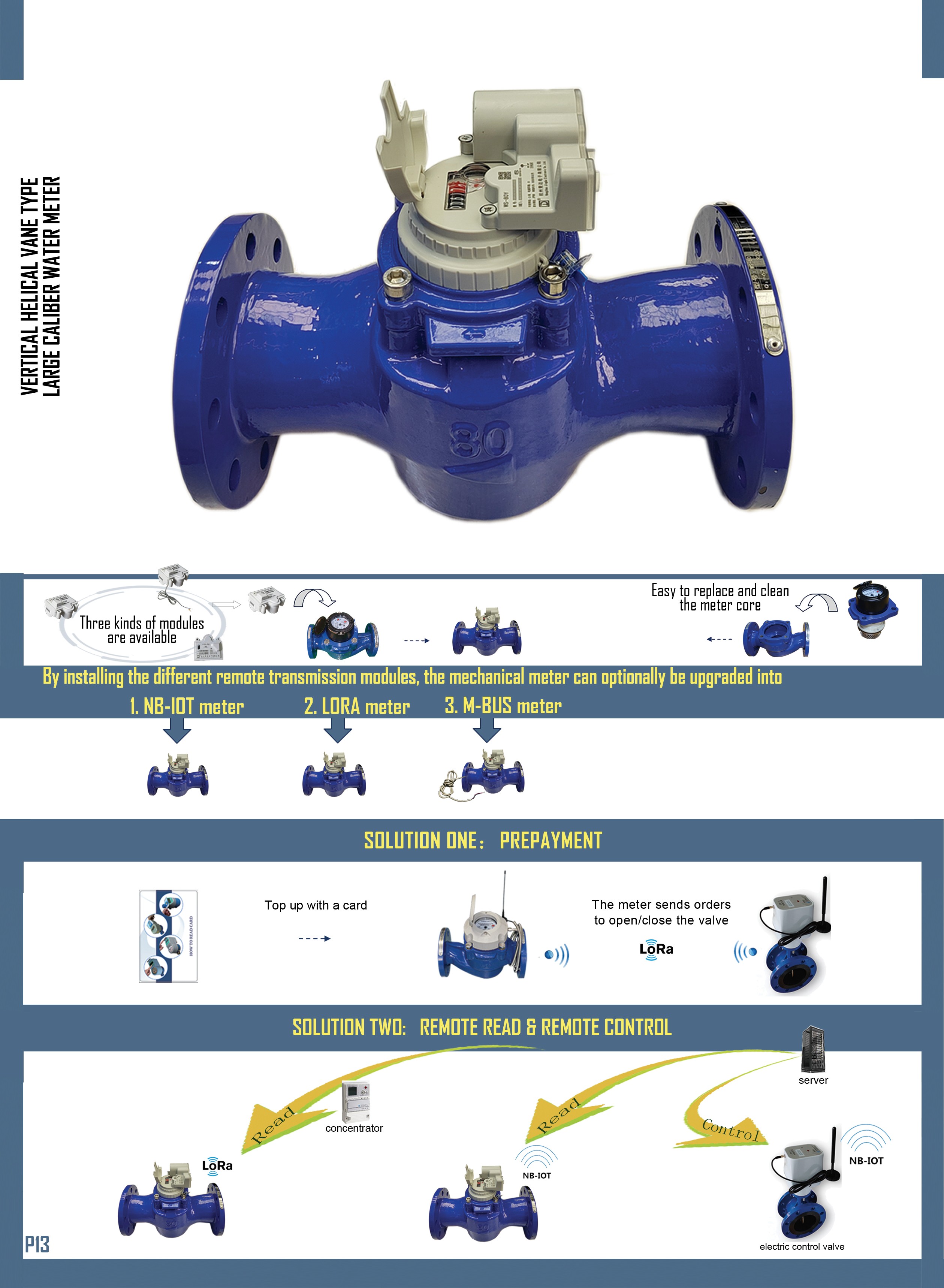

R160 Detachable water meter, Three Kinds Of Modulesare Available
Smart Woltman Water Meter with NB-IoT, LoRa, M-Bus

Smart Woltman Water Meter with NB-IoT, LoRa, M-Bus

Smart Woltman Water Meter: Versatile connectivity with NB-IoT, LoRa, and M-Bus. Supports prepaid and remote control systems with electric valves.

  • Previous:
  • Next:

    • Product Detail

    Product Tags

    Remote read meters

    1- Low-power design, built-in 3.6V lithium battery service life ≥6 years

    2- With high and low temperature automatic compensation function; with forward and reverse high-precision measurement capabilities.

    3- Large LCD screen displays: forward and reverse flow, flow direction, flow rate, cumulative flow, instantaneous flow, unit, leak detection, empty pipe detection, low battery alarm, external power supply display, etc.

    4- It adopts Europe's mature NFC near-field communication technology, has an embedded NFC near-field communication circuit board, connects to the remote data monitoring terminal, and realizes NB-loT data communication; it can be equipped with a new NDC electronic module to realize pulse output, M-Bus, and LoRa remote transmission.

    5- Optional remote controlled meters.

    * NB-IOT

    * LORA

    * M- BUS

    - Frequency band: 800MHz～900 MHz.



    - Low-power design, built-in 3.6V lithium battery service life ≥6 years



    - Meter data be received and sent to the operator's cloud by the wireless transmission module through the NB-IOT channel.



    The management software on server remote monitors the meters and settles the water bill based on the data extracted from the operator's cloud.

    - Frequency band: 470MHz～510 MHz



    - Low-power design, built-in 3.6V lithium battery service life ≥6 years



    - The concentrator communicates with the meters through Lora to receive data from meter, and sends data back to server by 4G/ Internet.



    - Water meter parameters can be set and modified by the hand holder by operator.

    - Communication Rate: 1200bps/2400bps/4800bps



    - The concentrator communicates with the meters to receive data from meter, and sends data back to server by 4G/ Internet.



    - The working voltage: DC24V powered by the bus; Built-in backup power DC3.6V, static current < 25μA.

    Mechanical characteristics & Parameters

    - The water meter can be easily upgraded to a remote water meter by replacing the cover with remote transmission module.

    - IP68 waterproof

    Dia. DN32 DN40 DN50
    Q3 6.3 16 25
    Range rate

    Q3/Q1=125,100,80,

    63,50

    Q2/Q1= 1.6
    Accuracy class Class 2
    Max reading 99999.9999m3

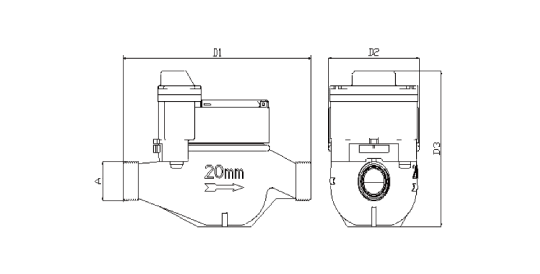

    D1 225 245 275
    D2 98 120 120
    D3 148 180 200
    A 1 1/2″ G2

    Flange

    * Temperature: T30

    * Pressure: MAP10

    * Pressure loss: Ap63



    * Upstream flow sensitivity level: U10

    * Downstream flow sensitivity level: D5

    * Climatic and mechanical environment grade: B

    * Electromagnetic environment level: El



    * Unable to measure reverse flow

    * Applicable water: pure tap water without impurities



    * Made of cast iron.

    * Rotary vane water meter, horizontal installation
